產品
產品參數

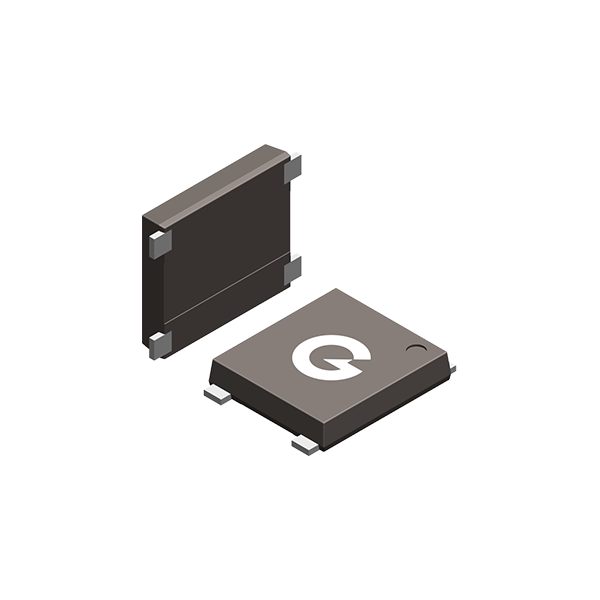

- Package: TDF
- products_sort:
- AEC Qualified: YES
- Pb Free: YES
- Halide free: YES
- Reach: YES
- RoHS: YES
- Marketing Status: Active
- Configuration: Bridge
- VRRM(V) max.: 1000
- IF(A) max.: 2
- VF (V) max: 1.1
- IFSM(A) max.: 50
- IR(uA) max.: 5
- trr (ns) max:
- TJ(°C) max.: 150
- TJ(°C) min.: -55
- ECCN(US): EAR99
- Category: 橋式整流器
包裝 (編帶盤裝)
| Package Name | Carrier Dimensions | Reel Dimensions | Inner Container | Outer Container | ||||||
| Tape Size(mm) | Reel Size(mm) | Quanity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | |
| TDF | 12 | 330 | 3 | 1.046 | 335X335X47 | 6 | 2.28 | 355X350X450 | 60 | 23.87 |
