產(chǎn)品參數(shù)

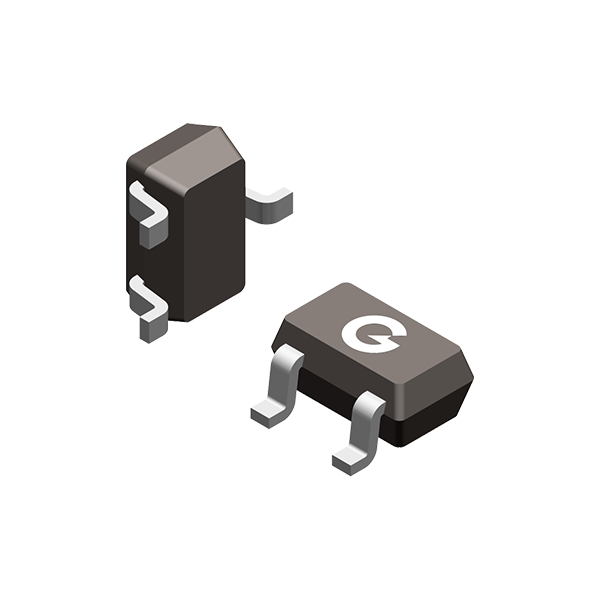

- Package: SOT-323
- products_sort:
- AEC Qualified: YES
- Pb Free: YES
- Halide free: YES
- Reach: YES
- RoHS: YES
- Marketing Status: Active
- Configuration: Single
- Channel Polarity: N
- PD(W) Max.: 0.25
- V(BR)DSS(V) Min.: 60
- VGS(V) Max.: ±20
- ID(A) Max.: 0.3
- IGSS(uA) Max.: ±10
- VGS(th)(V) Max.: 2.5
- RDS(on)(mΩ)@ 10V Typ.: 1000
- RDS(on)(mΩ)@ 10V Max.: 2500
- RDS(on)(mΩ)@ 4.5V Typ.: 1200
- RDS(on)(mΩ)@ 4.5V Max.: 4000
- RDS(on)(mΩ)@ 2.5V Typ.:
- RDS(on)(mΩ)@ 2.5V Max.:
- RDS(on)(mΩ)@ 1.8V Typ.:
- RDS(on)(mΩ)@ 1.8V Max.:
- Qg(nc) Typ:
- @Vgs(V):
- ESD: Y
- TJ(°C) max.: 150
- TJ(°C) min.: -55
- ECCN(US): EAR99
- Category: 小信號(hào)MOSFETs
包裝 (編帶盤裝)
| Package Name | Carrier Dimensions | Reel Dimensions | Inner Container | Outer Container | ||||||
| Tape Size(mm) | Reel Size(mm) | Quanity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | LxWxH(mm) | Quantity(kpcs) | Weight(kg) | |
| SOT-323 | 8 | 178 | 3 | 0.089 | 210X210X200 | 45 | 1.54 | 440X440X230 | 180 | 7.18 |
